CSL Steering Wheel 320 V2

CSL Steering Wheel 320 V2.

Multi-purpose, fully round wheel with ergonomic grips. The smooth leather is durable and comfortable, and features light grey stitching and a light grey centre stripe.

Product bundle.

This product is a bundle of the ClubSport Wheel Rim R320 and the CSL Universal Hub V2.

AUTHENTIC AND FINE MATERIALS.

The rim is made in brushed and anodised aluminium and covered in genuine smooth leather. It features a light grey centre stripe and light grey cross stitching.
The 320 mm diameter makes it suitable for many different driving disciplines.

Packed with features and refinements.

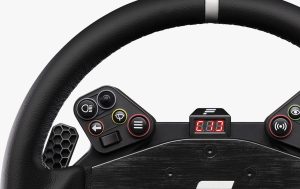

The integrated button islands, display, and shifters work neatly with many wheel rim combinations. The V2 has additional metal bracing to improve rigidity up to 23%, and the shifter paddle design has been revised.

Plenty of inputs.

Alongside eight standard buttons with snap-dome activation, the integrated button islands also feature a 2-way rocker switch, two 2-way toggle switches, and a 7-way FunkySwitch™ with rotary encoder functionality.

Ergonomic shifter paddles.

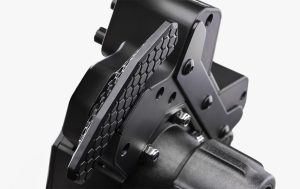

Reinforced with a honeycomb structure, the paddles are shaped to fit most wheel rims. They have a revised shape for improved comfort, and a new spring mechanism. The width of the paddle positions is adjusted together with the button islands as part of the slider system.

Tuning Menu access.

You can access the FANATEC® Tuning Menu with just the press of a button. Adjust your wheel base force feedback and other hardware settings while you drive.

Tuning with the FunkySwitch™.

The 7-way FunkySwitch™ is a multi-purpose input device, with d-pad, push-button, and rotary encoder. Press the Tuning Button to bring up the Tuning Menu on the integrated display and adjust settings with the FunkySwitch™.

Tool-free Simplified Quick Release.

The QR1 Lite Wheel-Side clamps easily to the steering shaft by hand, without the need for tools. Alternatively, you can select the metal QR1 Wheel-Side (sold separately), which unlocks High Torque Mode on Podium wheel bases. It can also be upgraded easily to the next-generation QR2 system (coming soon).

Features

ClubSport Wheel Rim 320:

• Three-spoke aluminium wheel rim with a diameter of 33 cm
• Genuine smooth leather
• Neon blue centre stripe
• Neon orange stitching
• Fanatec ‘F’ signet embossed in centre of black metal hub cover
• Weight: 860 g, 911g with metal hub cover

CSL Universal Hub V2:

• Innovative expanding design allows the hub to adjust to many sizes of wheel rim
  • Lightweight, stepless slider mechanism expands by 60 mm
  • Shifter paddle width adjustable from 214 mm to 274 mm (at widest point)
• Metal bracing improves rigidity up to 23% compared to V1
• Ergonomic shifter paddles
• Integrated button islands (non-removable)
• Eight standard buttons with snap-dome activation
• 2-way rocker switch
• Two 2-way toggle switches
• Tuning Menu button for instant access to force feedback and other Fanatec hardware adjustments
• Three-digit LED display for Tuning Menu functions and telemetry data from compatible games or third-party software
• 7-way FunkySwitch™: left, right, up, and down directional inputs, push button, and rotary encoder functionality
• Tool-free QR1 Lite Wheel-Side design:
  • Improved ease of use (no clamping bolt required) and durability
  • Exchangeable, supports metal QR1 Wheel-Side, unlocking High Torque Mode on Podium wheel bases
  • Ready for next-generation QR2 system (coming soon)
• Low weight of 660g (with QR1 Lite Wheel-Side, not including wheel rim) for fast acceleration and fidelity
• DataPort-C connector ready for future upgrades
• Can be used with all Fanatec wheel rims and all third-party rims using the 6 x 70 mm or 3 x 50 mm bolt pattern (e.g. Sparco, MOMO, OMP)
• Allows the use of third-party steering wheels with USB cables on all compatible Fanatec bases (direct USB connectivity is not possible)

Compatibility

Wheel Bases

This product is only compatible with the following wheel bases:

• PODIUM Wheel Base DD1 (QR1 Wheel-Side required*)
• PODIUM Wheel Base DD2 (QR1 Wheel-Side required *)
• PODIUM Wheel Base DD1 PS4™ (QR1 Wheel-Side required*)
• ClubSport Wheel Base V2
• ClubSport Wheel Base V2.5
• CSL Elite Wheel Base
• CSL Elite Wheel Base V1.1
• CSL Elite Wheel Base + – officially licensed for PS4™
• CSL DD Wheel Base
• Gran Turismo DD Pro Wheel Base

*It is possible to use High Torque Mode when using a metal quick release (QR1 Wheel-Side).

Accessories:

• QR1 Wheel-Side
• QR1 Lite Wheel-Side

This product is NOT compatible with the Podium Button Module Endurance.

Platforms

• PC: this product is compatible with Windows PC.
• Xbox: this product is not compatible with Xbox systems.
• PlayStation: The functionality of this product on PS4 can be limited by the capabilities of the console (subject to firmware/OS changes and developer support). The full functionality can only be guaranteed on PC; this is also game-dependent. PlayStation 5: Check our platform compatibility page for more details.

Special Notes

• To operate this product, a compatible Fanatec Wheel Base (not included) is mandatory.
• Buttons and paddle shifters are not easily reached with larger, dished wheel rims. For example, the ClubSport Wheel Rim GT (320 mm, no dish) works well, but the Podium Wheel Rim NASCAR (350 mm, dished) does not.
• DataPort-C connector is not compatible with USB devices.
• It is possible to use full torque on a CSL DD or Gran Turismo DD Pro with Boost Kit 180, even with the QR1 Lite Wheel-Side quick release.
• High Torque Mode on Podium Wheel Bases is only available when using a metal quick release (QR1 Wheel-Side).

What’s included

• Clubsport Wheel Rim R320
• CSL Universal Hub V2
