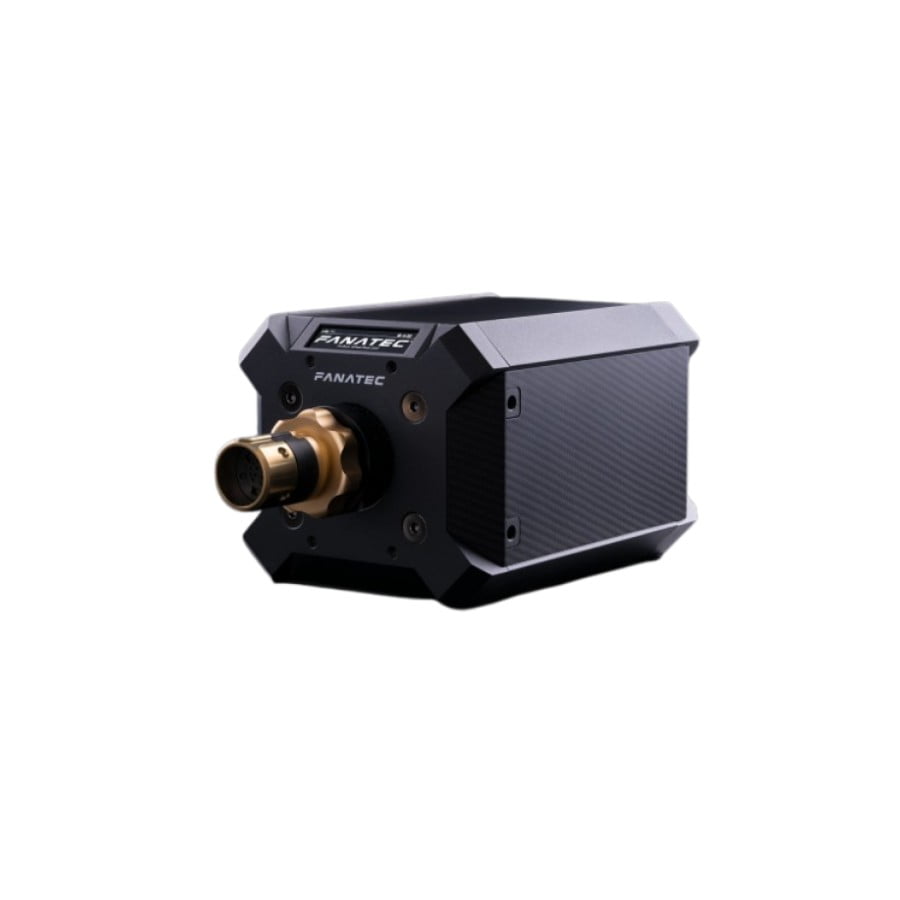

Podium Wheel Base DD2

Ultimate Performance

Introducing the Podium DD2, the ultimate force feedback experience. Breakthrough technology, incredible performance. Quite simply the most advanced direct drive solution ever.

THE DEFINITIVE DIRECT DRIVE SYSTEM

Podium wheel bases use an outrunner-type motor engineered from the ground up specifically for sim racing. Instead of using a random industrial motor, our custom motors are tailored without compromise for sim racing. Outstanding acceleration, ultra-low cogging, and exceptional holding torque performance results in a driving experience unlike any other.

GERMAN DESIGN WITH 5 YEARS WARRANTY

The Podium DD2 is the ultimate expression of our direct drive technology, thanks to our robust electronics designed for its extreme torque levels. Engineered with German precision and built to last for many years, the Podium DD2 is suitable for commercial and professional use; this the last wheel base you’ll ever need.

Direct Drive Without The Hassle

It’s all in the details. Our thousands of design hours means that you can just drive and enjoy.

WIRELESS DATA AND POWER

The endless rotation of our direct drive motor inspired the development of a unique solution to transfer data and power to the wheel inputs and displays wirelessly. This means no USB cables are flying around which can easily get damaged and make it difficult to let the wheel spin in a drift.

BETTER THAN EVER.

Since its release, the DD2 has received major firmware updates to add extra features and dramatically increase performance. FFB resolution has increased, latency has been lowered, and the motor controller is further optimised for fine detail.

Ready for the future.

Fully compatible with the existing Fanatec ecosystem, the Podium Wheel Base DD2 now also includes a free QR2 Base-Side (Type-M).

NOW INCLUDES QR2 UPGRADE.

The QR2 Base-Side (Type-M) is a motorsport-grade quick release system, fully CNC-machined from a single block of billet aluminium. You will receive this for free when you buy a new Podium Wheel Base DD2. The installation process takes a few minutes.

OLED DISPLAY

At the front of the housing sits an OLED display. This provides endless opportunities not only for tuning your wheel base, but also includes features for advanced users, displaying real-time motor and force feedback data. Check the temperatures, torque curves, and avoid force feedback clipping. Too complicated? Just enjoy the graphics.

FULL BACKWARDS COMPATIBILITY

Our proven automotive grade QR has been upgraded with a new locking system, retaining compatibility with all existing Fanatec steering wheels, while also being completely interchangeable. All new wheel bases and steering wheels will have changeable quick releases; in the future you will have the option to upgrade to a new QR system.

FEATURES

• Custom-designed servo motor designed by our engineers and the first direct drive motor optimised for racing simulator applications.
• Outrunner-type motor achieves outstanding peak torque of 25Nm, matching the torque output in most real race cars using power steering.
• Motor acceleration and speed remains at the highest level, even with heavy steering wheels.
• Ultra-low torque ripple ensures minimal mechanical distractions and the same smooth experience as in a belt driven wheel.
• Wireless QR technology: Wireless transfer of data (infra-red) and power (inductive coupling) between the motor and quick release means no external cables between wheel base and steering wheel, and no need for batteries inside the wheel.
• Rotation: 2520 degrees (electronically limited, adjustable).
• Integrated 2.7” 256×64 resolution OLED display for Tuning Menu, real-time motor and force feedback data, and Intelligent Telemetry Mode (FanaLabsoftware required).
• Standard Tuning Menu allows beginners to get started quickly without having to worry about settings
• Advanced Tuning Menu allows enthusiasts to fine-tune the force feedback characteristics to suit their driving preferences
• Support for advanced dual clutch bite-point mode
• Integrated electronics within wheel base housing, no external control box required.
• The integrated electronics and highest quality components ensure ultra-low latency, providing immediate feedback from racing simulators.
• Fully certified with CE, FCC, C-Tick, ROHS and all other certificates required by law, ensuring that this product does not interfere with other electronic devices.
• Torque Key allows user to lock/unlock the DD2’s full performance.
• All existing and upcoming Fanatec peripherals fully supported. Choose from a growing selection of Fanatec steering wheels in many different styles and price/quality levels.
• Killswitch allows instant shut down of the DD2 in the event of an emergency. It also features a remote power button, and universal mounting points for ease of access.
• Firmware can be updated with new features
• Fast 1000 Hz USB update rate
• Allows connection of two external shifters (e.g. H-pattern and sequential) in parallel
• Mount for ClubSport Static Shifter Paddles and other optional accessories • Connection ports for peripheral devices: USB, Power, Pedals, Shifter 1, Shifter 2, Handbrake
• All-Aluminium housing
• Exchangeable carbon fibre cover plates.
• Supports Fanatec 3-hole mounting pattern (bottom mounting) and side mounting. Hard mounting to a cockpit is highly recommended due the high amount of torque.
• Full Fanatec SDK support ensures game compatibility out of the box for all major racing games across all platforms.
• Combines with FanaLab software for PC.
  • Connect external devices to network for displaying telemetry data like speed, lap times, brake temperatures, tachometers and more.
  • Support for major PC racing simulators
  • Control your Upgraded Fanatec Tuning Menu settings and presets directly from the software.
  • Save game-specific settings to PC software, which will be applied when the game is launched.
• New FFB tuning features, e.g. speed-sensitive dampening.
• Automotive grade Quick Release system with expandable rubber damper (QR1) preinstalled.
• Motorsport grade QR2 Base-Side (Type-M) upgrade now included (packaged separately).
• Standard 5 year warranty.

COMPATIBILITY

Platforms

• PC: This wheel base is compatible with PC in combination with all available Fanatec steering wheels.
• Xbox®: This wheel base becomes compatible with Xbox One® and Xbox Series X|S when used with any Fanatec Xbox-licensed steering wheel.
• PlayStation®: This product is not compatible with any PlayStation® console and cannot be upgraded to achieve compatibility.

Peripherals

• All Fanatec Podium Steering Wheels
• All Fanatec ClubSport Steering Wheels
• All Fanatec CSL Steering Wheels (QR1 Wheel-Side required)
• All Fanatec Pedals
• All Fanatec Shifters
• RennSport Cockpit V2 (sold after Q4 2017)
• ClubSport Table Clamp V2

SPECIAL NOTES

• Not suitable for children.A Direct Drive Wheel Base is not a toy! The fast movements of the steering wheel and strong torque can be dangerous. Please read the safety instructions.
• QR2 Base-Side (Type-M) now included (packaged separately). If you wish to use QR2 Steering Wheels, the QR2 Base-Side must be installed before use.

PACKAGING DETAILS

• Dimensions (L x W x H)51cm x 26cm x 28cm
• Weight13kg
• Volume weight7.42kg

WHAT’S INCLUDED

• Podium Wheel Base DD2 with QR1 preinstalled
• QR2 Base-Side (Type-M), packaged separately
• Kill Switch with Remote Power Button
• Torque Key
• Quick guide
• Power supply
• USB cable

TECHNICAL SPECIFICATIONS

Platform	PC
Hardmount	3-hole pattern, 5-hole pattern from bottom, Sidemount 2-hole pattern on each side
USB update rate	1000Hz
Degrees of rotation	Unlimited / Adjustable
Connection ports	CAN, Data, Emergency Stop, Handbrake, Pedals, Shifter 1, Shifter 2, Torque Key
Display	2.7″ 256×64 OLED
Table Clamp	Optional
Kill Switch	Included
Cover plates	Carbon Fibre
Display modes	Clipping, FFB Telemetry, Wheel Base telemetry
Torque	Up to 25Nm
Tuning Menu through steering wheel	Yes
Rev Lights on Wheel Base	No
Adjustable ABS vibration	Yes
Adjustable brake force	Yes
Adjustable drift mode	Yes
Adjustable FF strength	Yes
Adjustable sensitivity	Yes
Adjustable shock	Yes
Adjustable spring	Yes
Quick Release	Yes
Cooling system	Single fan
Mode Button	No
Force Feedback drive system	Direct Drive
