CSL Cockpit Formula V2.5 Bundle (8NM)
AED 8200
PC
This product is compatible with PC.

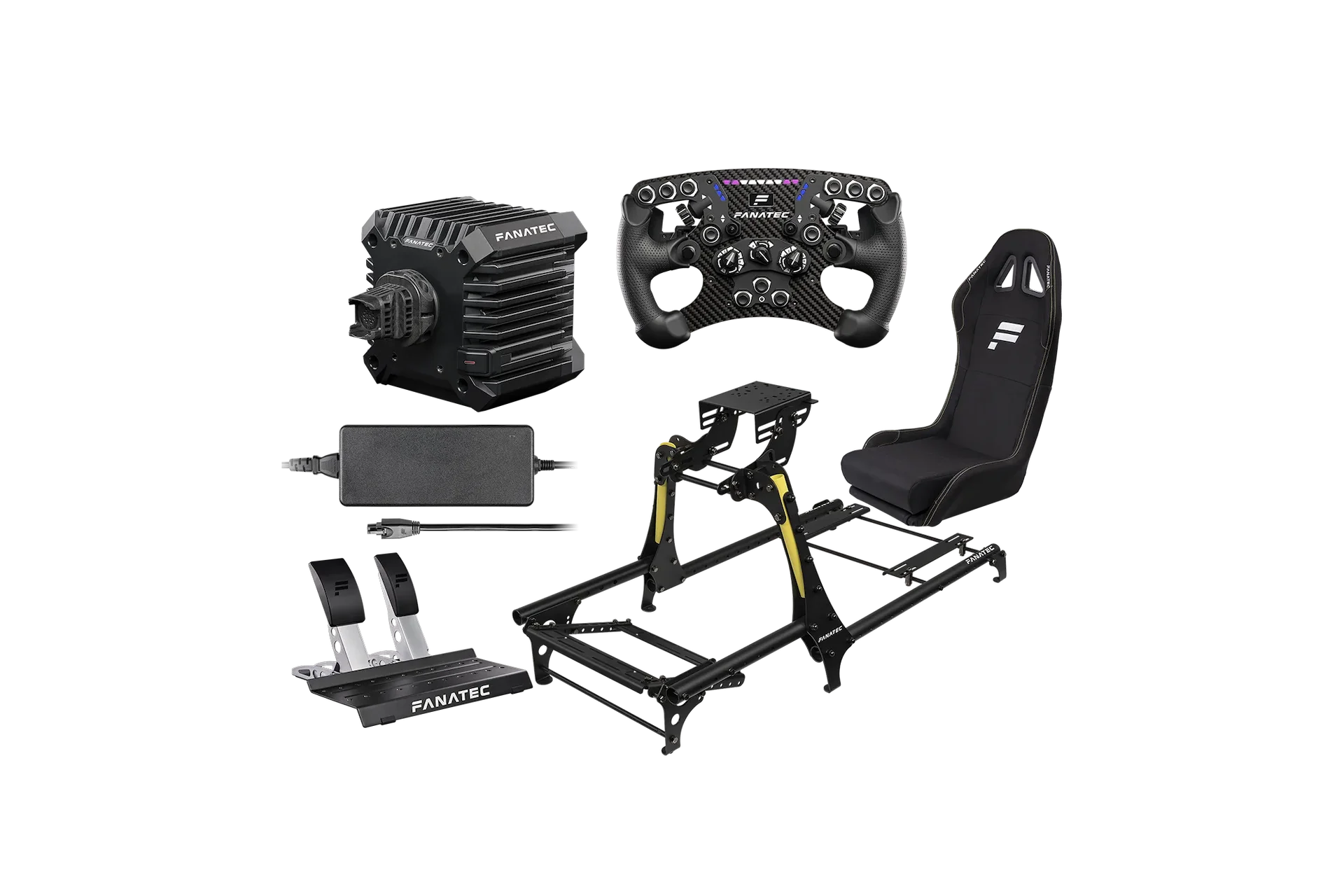

The CSL Cockpit Formula V2.5 Bundle uses the CSL DD with Boost Kit 180, providing 8 Nm of powerful force feedback, combined with the ClubSport Formula V2.5 wheel and CSL Pedals. Mounted to the CSL Cockpit, this is the perfect foundation for serious sim racers seeking a rock-solid rig at an unbeatable price. This combination of hardware is compatible with Windows PC. An Xbox-compatible bundle is also available.
FORMULA V2.5. RAISE YOUR GAME.

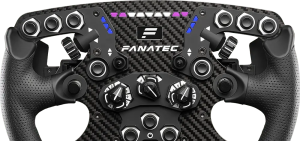

The ClubSport Steering Wheel Formula V2.5 is the perfect size and shape for all formula-style and single-seater race cars.
PREMIUM MATERIALS

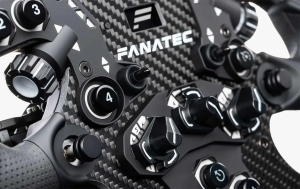

Retaining the shape of the iconic 270 mm ClubSport Formula wheel, the Formula V2.5 uses a 5 mm-thick, solid carbon fibre front plate, aluminium shifter modules, and smooth perforated leather grips.

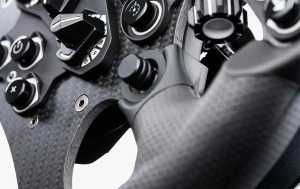

CRISP SHIFTINGThanks to the pre-installed, CNC-machined aluminium ClubSport Magnetic Paddle Module, you’ll shift gears with confidence every time. The wheel is packed with 11 buttons, 12-way multi-position switches, thumb encoders, toggle switches; the list goes on. Up to 67 functions of a game can be adjusted directly.
DIRECT-DRIVE SUPERIORITY.When the steering wheel is directly mounted to the motor shaft, there’s no belt or gear drive to dilute the force feedback effects. The clear choice of all professional drivers and enthusiast sim racers is now available to a broader audience.
PLUG AND PLAY.Our strong relationship with game developers means the CSL DD has broad compatibility and consistent behaviour across many popular titles. The Standard Tuning Menu has been simplified, allowing beginners to start quickly without having to worry about settings. The Advanced Tuning Menu remains for enthusiasts.

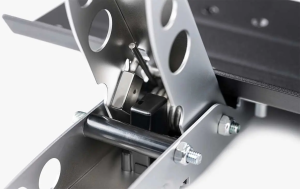

HEAVY STEEL CONSTRUCTION.The stability of the all-metal design means it is built to last. The stiffer spring on the brake pedal combined with the PU foam damper provides a realistic, progressive feeling.
MAGNETIC SENSORS.Both the throttle and brake axes use precision Hall-effect sensors. By measuring pedal position with magnets, the system is contactless, meaning no wear on the sensor and consistent performance.

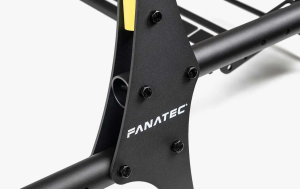

UNBELIEVABLY STRONGAngled uprights help to distribute the load on the chassis more effectively than a rectangular profile construction. The CSL Cockpit can handle all Fanatec Direct Drive systems, even the 25 Nm Podium Wheel Base DD2, and the pedal plate is designed for the high forces applied on load cell brakes.
CONSISTENCY IS EVERYTHING
Step into a rig that feels the same every time you drive, so you can focus on your lap times.
EASY TO ASSEMBLE, BUILT TO LAST

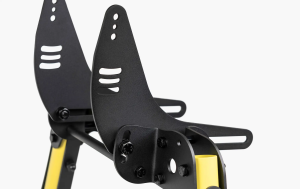

The frame is made of aluminium tubing and steel brackets, with easy-to-follow instructions to assemble with the included tools.
ACCESSORIES

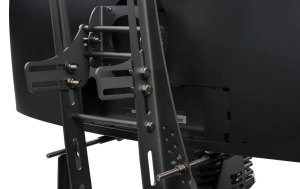

Choose your optional accessories : CSL Cockpit Seat, CSL Cockpit Shifter Holder, and CSL Cockpit Monitor Holder are all specially designed to fit the CSL Cockpit (all sold separately, more accessories coming soon).
FEATURES
CSL COCKPIT
- Super strong and lightweight trapeze chassis
- Aluminum tubing
- Steel brackets
- Black and yellow powder coating
- Designed specifically for Fanatec Direct Drive Wheel Bases with optimal side mounting
- Strong pedal plate for consistent control on load cell brakes
- CSL Cockpit Seat (sold separately) designed to match the style of the CSL Cockpit
- Supports most standard racing seats (including the SPARCO Pro 2000 QRT)
- Pedals angle and distance adjustment
- Innovative Wheel Base mounting bracket design
- Three height options
- Stepless adjustable angle (0 to 30°)
- Stepless adjustable distance to seat (80 mm range)
- Can be inverted to achieve an ideal karting position
- Optional monitor holder (sold separately)
- Optional shifter holder (sold separately)
- Hollow tubing allows for tidy cable management
- Included tube caps with cable holes.
- Two types of protective foot pads (felt and rubber) to suit carpet or hard flooring
- Compact packaging for ease of shipping.
CLUBSPORT STEERING WHEEL FORMULA V2.5
- Formula-style steering wheel with a compact diameter of 270 mm for fast movements and reactions
- Durable construction made of metal and carbon fibre
- 5 mm solid carbon fibre front plate. Carbon fibre plate is constructed of approx. 30 layers of unidirectional carbon cloth
- Grips made of genuine smooth leather, perforated for improved breathability
- Rubber-coated surfaces including button framing and thumb encoders
- ClubSport Magnetic Paddle Module pre-installed
- 3 mm-thick, black anodised aluminium paddle plates
- Paddle module cage made of CNC machined aluminium
- Neodymium magnets
- Paddle module easily upgradable to Podium Advanced Paddle Module (optional)
- Steering wheel weight: approx. 1250 g
- 11 buttons plus four paddles with ultra-reliable switches
- Two 2-way toggle switches
- Two 12-way multi-position switches with encoder functionality
- 7-way FunkySwitch™: left, right, up, and down directional inputs, push button, and rotary encoder functionality
- Analogue joystick
- Two thumb encoders easily reachable while driving without releasing the grips
- Two vibration motors integrated with the grips, controllable through wheel Tuning Menu (SHO) or by game through Fanatec SDK
- RevLEDs with nine multi-colour LEDs to show motor RPM and optimal shifting point as games program through the Fanatec SDK
- Two FlagLEDs with three multi-colour LEDs each to indicate tyre slip, flag warnings, pit limiter, and more, as games program through the Fanatec SDK
- User-defined LED and display behavior via FanaLab
- 1″ 128×64 white OLED display to show telemetry data like speed or gear as games program through the Fanatec SDK
- Tuning functions with OLED display to adjust settings independent from the game and during gameplay (see description of compatible wheel base/racing wheel for details)
- Racing-style button caps included
- QR2 Wheel-Side (packaged separately)
CSL DD QR2 (8 NM)
- Direct-Drive system delivers instant, detailed force feedback
- Boost Kit 180 included
- Linear, consistent performance (8 Nm peak torque)
- Patented, exclusive FluxBarrier technology optimises motor efficiency and smoothness
- Full Fanatec SDK support ensures game compatibility out of the box for all major racing games
- Standard Tuning Menu allows beginners to get started quickly without having to worry about settings
- Advanced Tuning Menu allows enthusiasts to fine-tune the force feedback characteristics to suit their driving preferences
- High-resolution (contactless) Hall-position-sensor, same as Podium Series
- Steering axis made from carbon fibre-enhanced composite
- Fanless: wheel base housing is made from aluminium (passive heat sink, core structural component) with composite end caps
- Rotation: 2520 degrees (electronically limited, adjustable)
- Slip ring system (life-tested for thousands of hours) provides cable-free delivery of power and data to steering wheels
- QR2 quick release system
- Motorsport-derived quick release
- Tapered shape naturally ensures a tight fit
- Carbon fibre-reinforced polyamide construction
- Exchangeable
- T-nut rail system on sides and bottom for easily adjustable hard-mounting
- Optional table clamp (sold separately), supports 5 to 60 mm table thickness

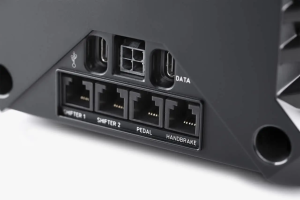

- Ports:
- Power supply
- USB-C to PC / console
- Fanatec DataPort-C
- Shifter 1
- Shifter 2 (Sequential only)
- Pedal
- Handbrake
- Front-mounted threaded inserts for Fanatec accessories (e.g. ClubSport Static Shifter Paddles, available separately). Not intended for front-mounting the wheel base to a sim racing chassis/cockpit.
CSL PEDALS
- Two-pedal set (throttle and brake), upgradeable to three pedals
- All-metal construction (excluding pedal faces). Pedals are made from heavy steel, which helps to prevent the set from sliding on the floor (if not hard-mounted to a rig)
- Optional anodised aluminium pedal plates
- Contactless Hall sensors (12-bit) on both brake and throttle for high precision and durability
- Brake pedal spring is stiffer than throttle pedal spring, PU foam damper adds additional resistance for progressive braking feel
- Upgrade to a three-pedal configuration with Clutch Kit or Load Cell Kit
- CSL Pedals Clutch Kit provides a third pedal for the lowest price
- CSL Pedals Load Cell Kit also provides a third pedal, and upgrades the brake and electronics
- Pedal position can be adjusted sideways along heel rest
- Height-adjustable pedal faces
- Modular design means inverted mounting to a rig is possible
- Vertical rear plates allow pedals to be easily braced against a wall or other vertical surface
- Pearl chrome plating on pedal bases and arms
- Black powder coating on heel rest
- Pedals connect directly to all compatible Fanatec Wheel Bases
COMPATIBILITY
PERIPHERALS
The CSL DD QR2 Wheel Base is compatible with:
- All Fanatec Steering Wheels (with QR2 Lite Wheel-Side, QR2 Wheel-Side, or QR2 Pro Wheel-Side)
- All Fanatec Pedals (adapter cables might be required on pedals without RJ12 connection)
- ClubSport Shifter (including ClubSport Static Shifter Paddles)
- ClubSport Handbrake (all versions)
- All Fanatec Cockpits
- CSL DD Table Clamp
- ClubSport DD Table Clamp
- ClubSport Table Clamp V2
- Boost Kit 180
- Podium Mounting Brackets (the CSL DD includes M6 T-nuts for side-mounting; the Podium Mounting Brackets require the use of M6 bolts and washers)
PLATFORMS
- PC: The CSL DD QR2 Wheel Base is compatible with PC when combined with a Fanatec Steering Wheel. Check the individual Steering Wheel product pages for Wheel Base compatibility.
- Xbox®: The CSL DD QR2 Wheel Base becomes compatible with Xbox One® and Xbox Series X|S when used with any Fanatec Xbox-licensed Steering Wheel.
- PlayStation®: The CSL DD QR2 Wheel Base is not compatible with any PlayStation® console and cannot be upgraded to achieve compatibility.
WHAT’S INCLUDED
CSL COCKPIT
- CSL Cockpit
- CSL Cockpit Seat
- Tube caps
- Foot pads
- Bolts and fasteners
- Tools
- 1x Quick Guide
CLUBSPORT STEERING WHEEL FORMULA V2.5
- ClubSport Steering Wheel Formula V2.5
- ClubSport Magnetic Paddle Module with aluminium paddle plates (pre-installed)
- QR2 Wheel-Side (packaged separately)
- Racing-style button caps
- Quick Guide
- Safety pin for long-term storage
- Safety screw for permanent mount on wheel base
CSL DD QR2 (8 NM)
- CSL DD Wheel Base
- QR2 Lite Base-Side (Type-C) preinstalled
- Boost Kit 180 power supply (regional)
- 4x T-nuts for rail mount system
- USB cable (Type-C to Type-A)
- Quick Guide
CSL PEDALS
- Throttle pedal unit
- Brake pedal unit with PU foam damper
- Heel rest
- 1x Wheel Base connection cable RJ12/RJ12 (~2m)
- 1x Torx key
- M4x12 mounting bolts (only to mount pedals to heel rest)
- Hard-mounting spacers
- Replacement rubber feet (floor protection)
- 1x Quick Guide
DOCUMENTATION & GUIDES
VIDEO GUIDES
SPECIAL NOTES
- Not suitable for children. The fast movements of the steering wheel and strong torque can be dangerous. Please read the safety instructions.
- The QR2 Lite Base-Side (Type-C) included with the CSL DD QR2 is compatible with all versions of the QR2 Wheel-Side (Lite, Regular, Pro) and does not cause any torque restriction, even with the Boost Kit 180. Click here for all the details about QR2.
- To enable features such as Steering Wheel LEDs in some titles, it may be necessary to switch the CSL DD to Compatibility Mode. This can also help with titles not working in standard PC mode. Check the Quick Guide for details.
- Only the standard 90W power supply or the Boost Kit 180 can be used with this Wheel Base. The use of any other power supply will void the Wheel Base warranty, is potentially dangerous and can lead to serious injury or death.
- Cockpit adjustability may depend on the peripherals used, for example height options for Podium Wheel Bases are limited due to the size of the casing.
- The use of third-party sim racing hardware is not tested nor endorsed by Fanatec.
- The CSL Cockpit Seat can be hard-mounted directly to the CSL Cockpit frame. Supports the use of seat sliders (sold separately)
