CSL DD QR2 Ready2Race McLaren Elite Bundle (8Nm) for Xbox & PC

Full-scale replica.

Officially licensed by McLaren Automotive Limited, this is a full-size, detailed reproduction of the steering wheel used in McLaren GT3 race cars. The overall shape, as well as the size of the switches, paddles, and dials is based on original McLaren CAD data.

REFINED DESIGN.

The CSL Elite Steering Wheel McLaren GT3 V2 is a refinement of the original, with redesigned electronics for improved performance and durability. The fourth rotary encoder of the real GT3 wheel is replaced by a white, 1” OLED display.

OFFICIALLY LICENSED FOR XBOX®.

Attach this wheel to any compatible FANATEC® wheel base and the whole system (including attached peripherals such as shifters, pedals, or handbrake) will work on Xbox One® and Xbox Series X|S.

CSL DD. Now with QR2.

Bring the race track to your home with exceptional Direct Drive performance in a compact design. Now including QR2, you’ll experience even more precision and detail in the force feedback.

FANATEC® Direct-Drive technology.

When the steering wheel is directly mounted to the motor shaft, there’s no belt or gear drive to dilute the force feedback effects. Choose Direct Drive by Fanatec and experience your favourite racing simulations as the developers intended.

Plug and Play.

Our strong relationship with game developers means the CSL DD has broad compatibility and consistent behaviour across many popular titles. The Standard Tuning Menu has been simplified, allowing beginners to start quickly without having to worry about settings. The Advanced Tuning Menu remains for enthusiasts.

Maximum strength.

The CSL DD QR2 (8 Nm) package includes the Boost Kit 180, a powerful 180W power supply that unlocks the full performance of the direct drive motor.

Efficient and responsive.

The efficiency of the CSL DD motor technology means dynamic force-feedback performance is contained in a small footprint. This is also the first industrial motor to feature a carbon fibre composite motor shaft, which increases responsiveness and acceleration significantly due to low rotational masses.

8 Nm peak torque.

Using the included Boost Kit 180, the CSL DD operates in its 8 Nm mode. This provides much stronger feedback, and as a result, you’ll feel the subtle cues more clearly too. This high level of torque can be sustained without the need for active cooling, with the extruded and CNC-machined aluminium casing acting as the structural chassis as well as the heatsink.

Drive your way.

CSL Elite Pedals V2 connect directly to any supported FANATEC® Wheel Base via the included RJ12 cable. Alternatively, they can be used as a standalone USB device (on PC) using the included USB cable. Pedal position can be adjusted sideways along the heel rest, and it is easily configurable as a two-pedal set.

MAGNETIC SENSORS.

Both the throttle and brake axes use precision Hall-effect sensors. By measuring pedal position with magnets, the system is contactless, meaning no wear on the sensors and consistent performance.

Muscle memory.

The load cell sensor measures pressure rather than position. Tuned to a genuine 90 kg (adjustable) at the pedal plate, this realistic level of resistance trains your muscle memory and you’ll brake with confidence and precision every time.

Features

CSL Elite Steering Wheel McLaren GT3 V2:

• Full-scale replica of a McLaren GT3 Steering Wheel
• Officially licensed by McLaren Automotive Limited
• Officially licensed for Xbox One® and Xbox Series X|S (learn more)
• Two analogue paddles with reinforced honeycomb pattern, supporting four switchable modes:
  • Clutch bite-point mode (standard/advanced)
  • Clutch/handbrake mode
  • Brake/throttle mode (allows driving without pedals connected)
  • Mappable axis mode
• Clutch bite-point system can be used in any game with analogue clutch input
• Magnetic shifters for superior tactile response
• Rocker-type paddle made from anodised aluminium allows up and down-shifts with one hand (possible on both sides)
• Diamond texture grips on shifter and clutch paddles
• 1”, 128 x 64 resolution OLED display (white)
• Two 2-way toggle switches
• Multi-Position Switches: two 12-position switches, configurable as endless rotary encoders
• 7-way FunkySwitch™: left, right, up, and down directional inputs, push button, and rotary encoder functionality
• Two high-bezel snap-dome buttons with laser-engraved P and N lettering. Identical resistance to the buttons on the real wheel
• Seven standard buttons with exchangeable button caps
• Tuning Menu button for instant access to force feedback and other Fanatec hardware adjustments
• Overmolded rubber grips (like the original GT3 wheel) with 50 Shore A hardness
• Racing-style button caps included
• Button label placement indicators for placing additional indicators such as “VIEW” & “KERS” (sticker set included)
• Xbox® mode LED indicator
• 300 mm diameter
• QR2 Lite Wheel-Side upgrade included (must be installed before use)

CSL DD QR2:

• Direct-Drive system delivers instant, detailed force feedback
• Boost Kit 180 included
• Linear, consistent performance (8 Nm peak torque)
• Patented, exclusive FluxBarrier technology optimises motor efficiency and smoothness
• Full Fanatec SDK support ensures game compatibility out of the box for all major racing games
• Standard Tuning Menu allows beginners to get started quickly without having to worry about settings
• Advanced Tuning Menu allows enthusiasts to fine-tune the force feedback characteristics to suit their driving preferences
• High-resolution (contactless) Hall-position-sensor, same as Podium Series
• Steering axis made from carbon fibre-enhanced composite
• Fanless: wheel base housing is made from aluminium (passive heat sink, core structural component) with composite end caps
• Rotation: 2520 degrees (electronically limited, adjustable)
• Slip ring system (life-tested for thousands of hours) provides cable-free delivery of power and data to steering wheels
• QR2 quick release system
  • Motorsport-derived quick release
  • Tapered shape naturally ensures a tight fit
  • Carbon fibre-reinforced polyamide construction
  • Exchangeable
• T-nut rail system on sides and bottom for easily adjustable hard-mounting
• Optional table clamp (sold separately), supports 5 to 60 mm table thickness
• Ports:
  • Power supply
  • USB-C to PC / console
  • Fanatec DataPort-C
  • Shifter 1
  • Shifter 2 (Sequential only)
  • Pedal
  • Handbrake
• Front-mounted threaded inserts for Fanatec accessories (e.g. ClubSport Static Shifter Paddles, available separately). Not intended for front-mounting the wheel base to a sim racing chassis/cockpit.

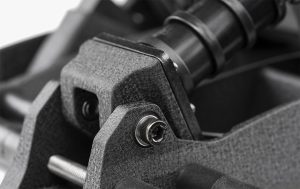

CSL Elite Pedals V2:

• High-performance three-pedal set (clutch, brake, throttle)
• Contactless Hall sensors on both clutch and throttle for high precision and durability
• All-new load cell brake system
  • Up to 90 kg measured foot force on pedal plate (load cell sensor rated >200 kg)
  • Load cell sensitivity (approx. 10 kg minimum) adjustable via Tuning Menu (or Fanatec Control Panel on PC)
  • Elastomer stack combined with load cell sensor creates a realistic braking feel
  • Elastomer springs with 65, 75, and 85 Shore hardness included (tool-free adjustment)
  • ‘Dual-stage’ preload feeling with metal spring and elastomer
  • Alternative metal spring also included for stiffer preload
• Pedal arms, faces, and heel rest made from cast and machined aluminium with durable power-coated finish
• Fully assembled out of the box, plug and play
• Easily configurable as a two-pedal set
• Pedal position can be adjusted sideways along heel rest
• Pedals can be individually mounted without heel rest, inverted mounting possible (hardware not included)
• Detachable rubber pedal covers
• Revised structure on all pedals for greater durability
• Improved access to hard-mounting points
• Dedicated handbrake port
• RJ12 or USB connection
  • Connect directly to all compatible Fanatec Wheel Bases via RJ12 (recommended)
  • Use as a standalone USB input device (PC only)

Compatibility

Peripherals

The CSL DD QR2 Wheel-Base is compatible with:

• All Fanatec Steering Wheels (with QR2 Lite Wheel-Side, QR2 Wheel-Side, or QR2 Pro Wheel-Side)
• All Fanatec Pedals (adapter cables might be required on pedals without RJ12 connection)
• Fanatec ClubSport Shifters (including ClubSport Static Shifter Paddles)
• Fanatec ClubSport Handbrakes
• Fanatec Cockpits
• ClubSport DD Table Clamp
• CSL DD Table Clamp
• ClubSport Table Clamp V2
• Boost Kit 180
• Podium Mounting Brackets (the CSL DD includes M6 T-nuts for side-mounting; the Podium Mounting Brackets require the use of M6 bolts and washers)

Platforms

• PC: The CSL DD QR2 Wheel Base is compatible with PC when combined with a Fanatec Steering Wheel. Check the individual Steering Wheel product pages for Wheel Base compatibility.
• Xbox®: The CSL DD QR2 Wheel Base becomes compatible with Xbox One® and Xbox Series X|S when used with any Fanatec Xbox-licensed Steering Wheel.
• PlayStation®: The CSL DD QR2 Wheel Base is not compatible with any PlayStation® console and cannot be upgraded to achieve compatibility.

Special Notes

• Not suitable for children. A Direct Drive Wheel Base is not a toy! The fast movements of the steering wheel and strong torque can be dangerous. Please read the safety instructions.
• Partial returns are not be possible for (limited time) deals, discounts or offers.
• The QR2 Lite Base-Side (Type-C) included with the CSL DD QR2 is compatible with all versions of the QR2 Wheel-Side (Lite, Regular, Pro) and does not cause any torque restriction, even with the Boost Kit 180. Click here for all the details about QR2.
• In order to enable features such as Steering Wheel LEDs in some titles, it may be necessary to switch the CSL DD to Compatibility Mode. This can also help with titles not working in standard PC mode. Check the Quick Guide for details.
• Only the standard 90W power supply or the Boost Kit 180 can be used with this Wheel Base. The use of any other power supply will void the Wheel Base warranty, is potentially dangerous and can lead to serious injury or death.

What’s included

• CSL Elite Steering Wheel McLaren GT3 V2
• QR2 Lite Wheel-Side (must be installed before use)
• CSL DD Wheel Base
• QR2 Lite Base-Side (preinstalled)
• Boost Kit 180
• CSL Elite Pedals V2

Technical Specifications

• Platform: PC, XBox One
