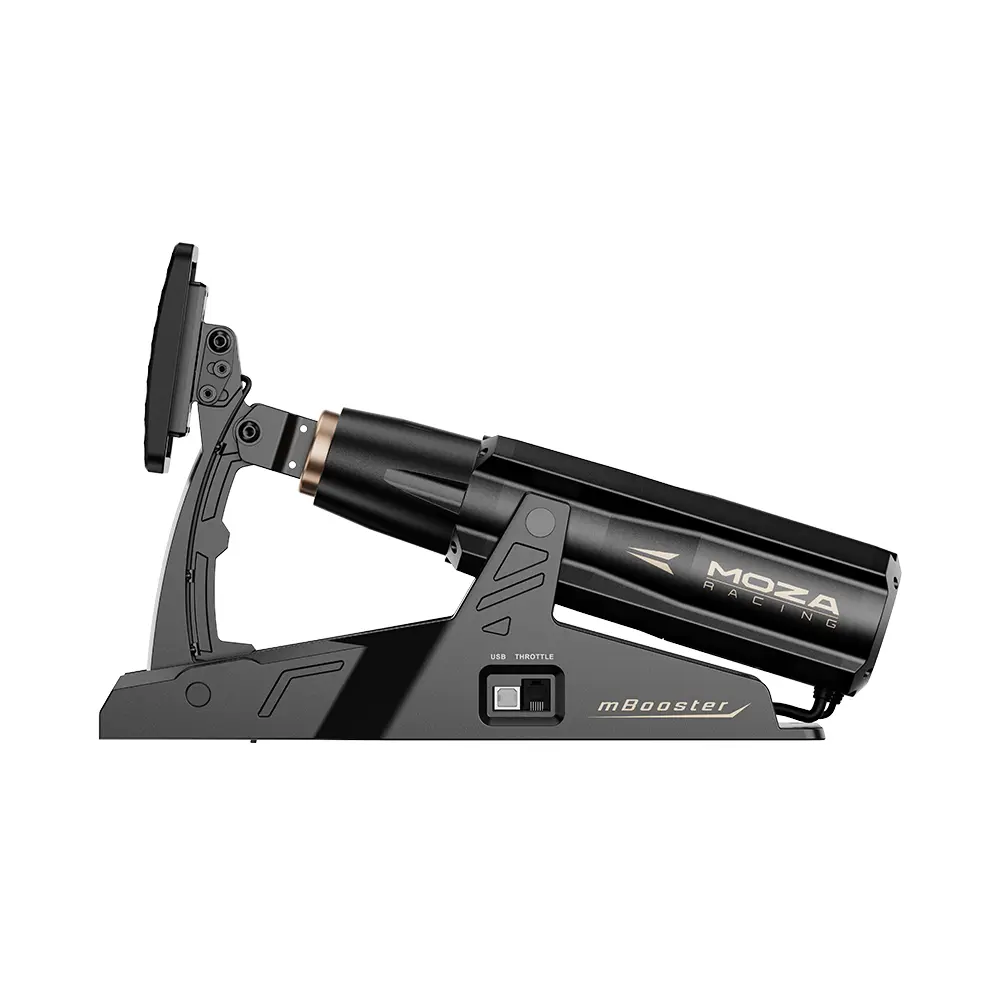

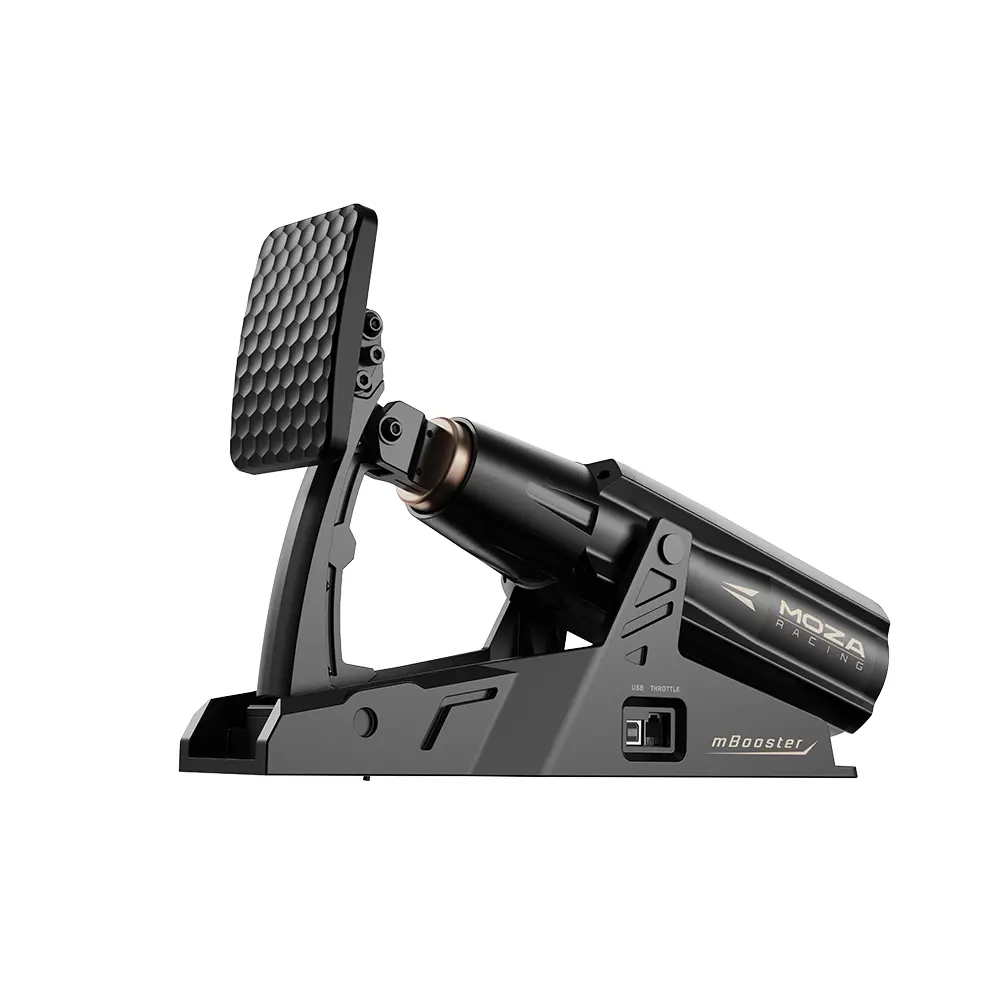

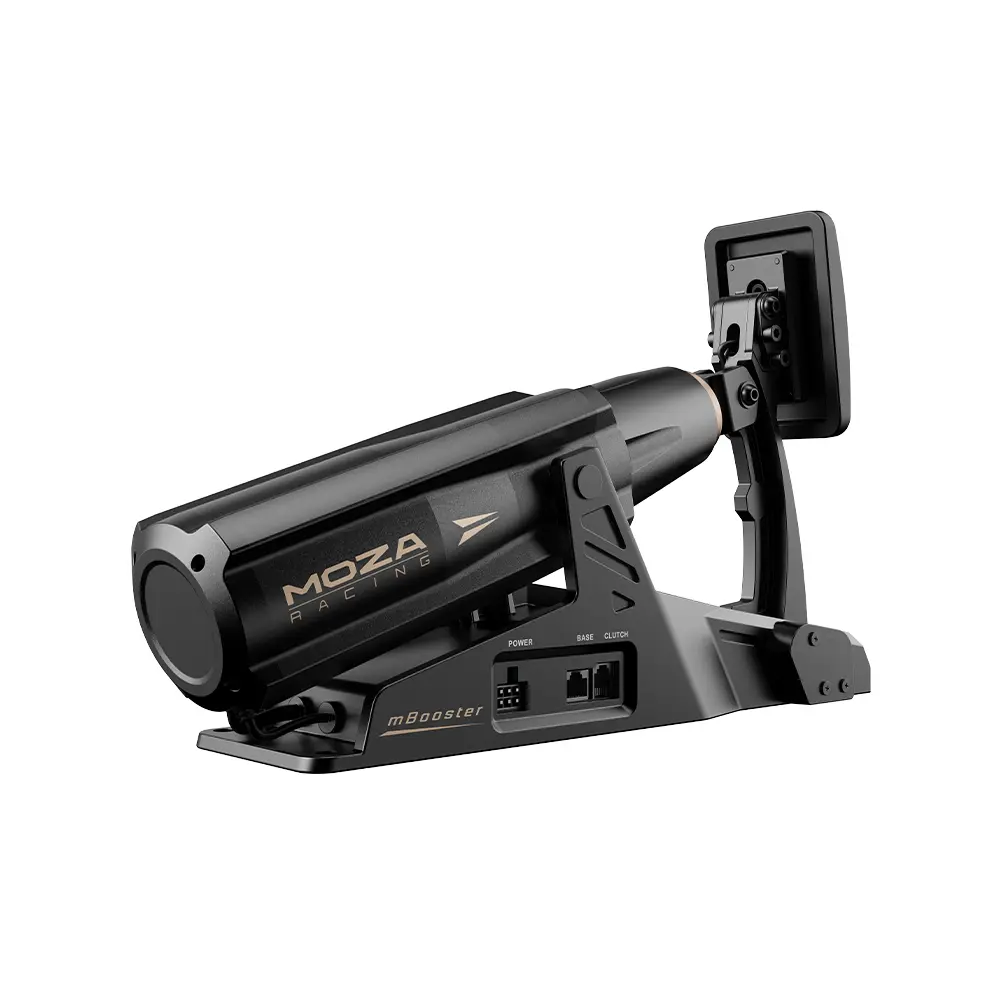

MOZA mBooster Active Pedal

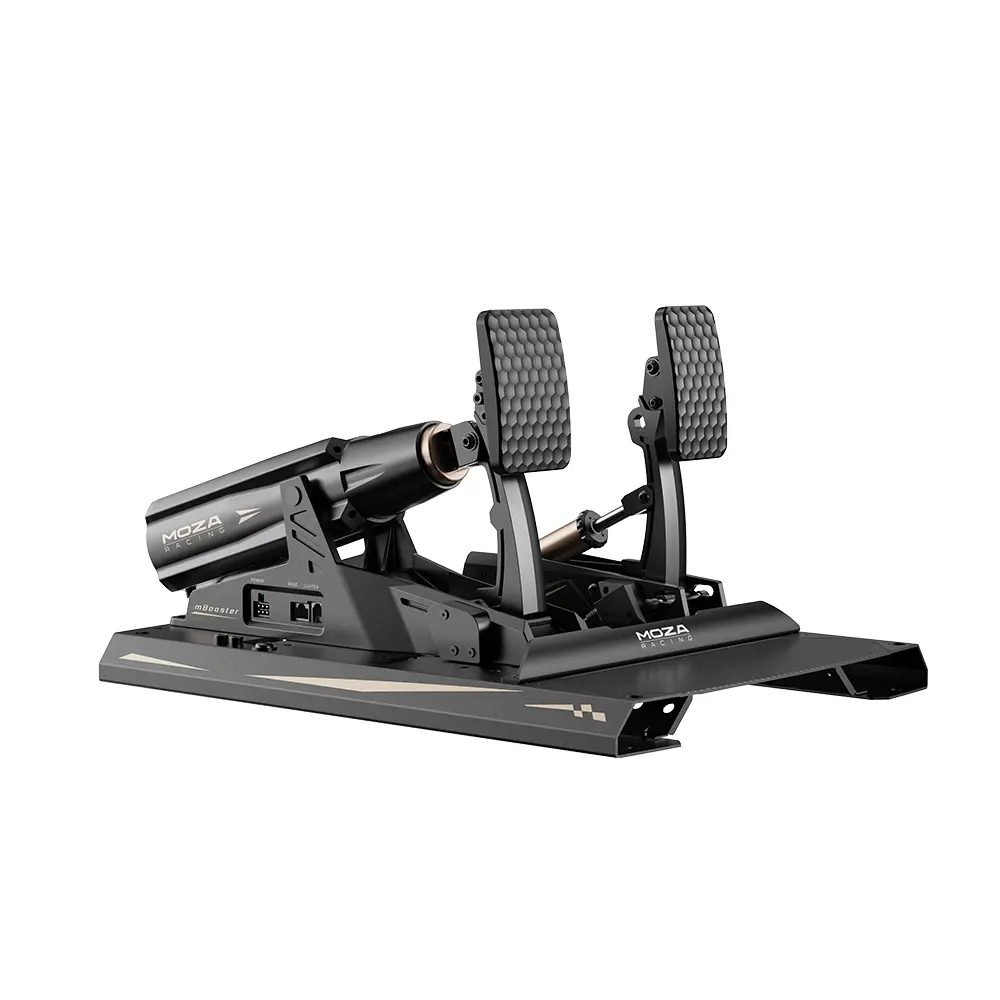

The MOZA mBooster Active Pedal redefines sim racing with realistic dynamic force feedback and precision control. It delivers unparalleled accuracy and responsiveness and features dual 200KG load cell sensors and a 21-bit high-resolution magnetic encoder. The high-torque density motor and MOZA Pit House software enable one-click customization for throttle, brake, or clutch functions. With adjustable pedal feel, real-time ABS, traction control, engine vibration, and G-force feedback, the mBooster ensures an immersive and true-to-life driving experience. Compatible with CRP2 pedals for enhanced performance and seamless integration with MOZA Racing ecosystems.
*For CRP2 users, you’ll need Extension Plate for mBooster mounting.
SPECS
| Body Material | Aluminum Alloy |
| Pressure Sensor Range | 0-200kg |
| Brake Sensor | Load Cell Sensor and Angle Sensor |
| Angle Sensor Resolution | 15-bit (32768 PPR) |
| Peak Power | 270W |
| Input Voltage | 110V-220V AC → 48V DC |
| Travel Adjustment | 0-25° |
| Angle Adjustment | 0–15° |
| Curve Adjustment | Adjustable |
| Real-time Pedal Output Display | Adjustable |
| Pressure Engagement Point | Adjustable |
| Surface | Biomimetic curved |
WHAT’S INBOX
-
MOZA mBooster Active Pedal x1
